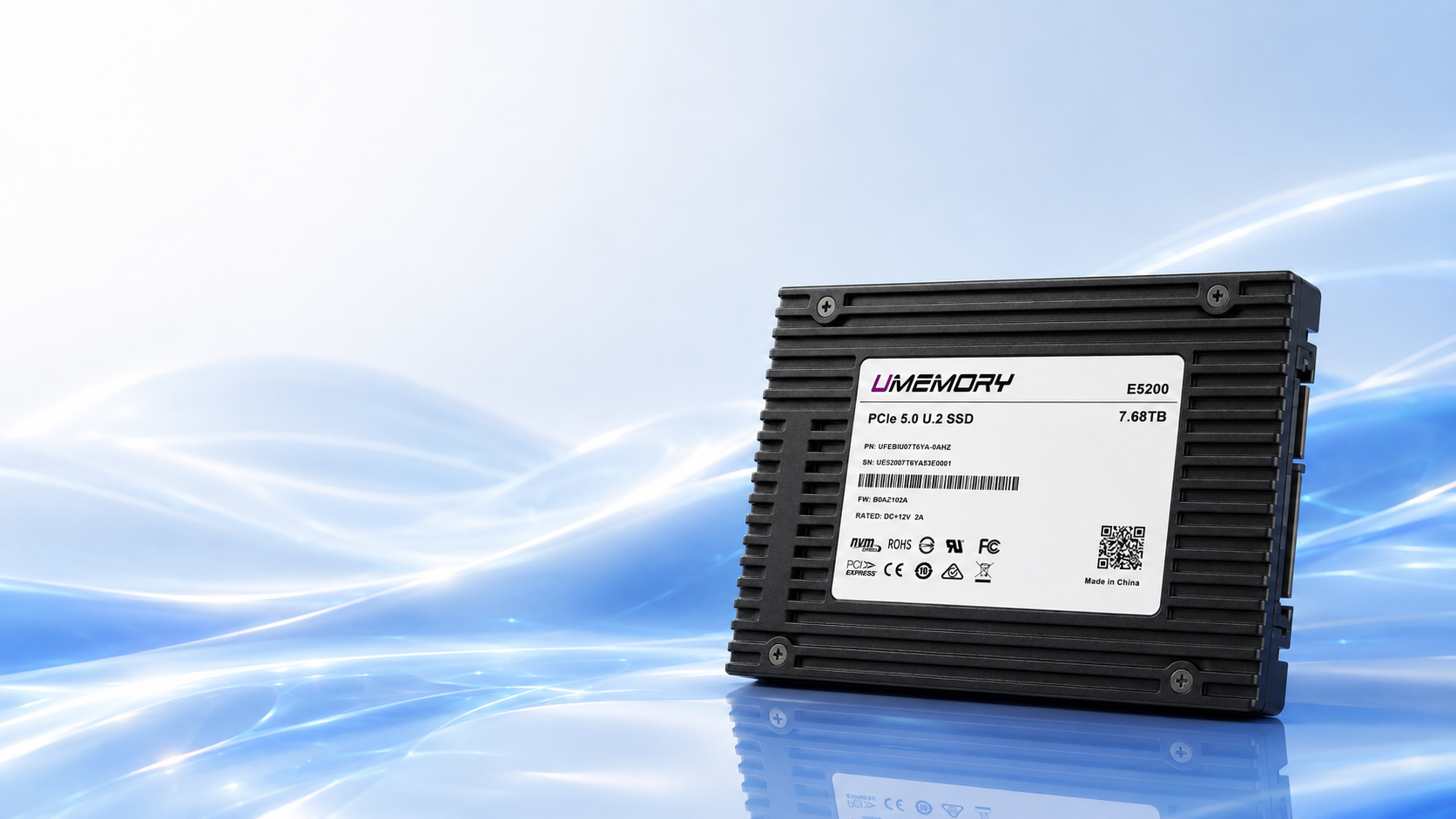

PCIe 5.0 U.2 SSD E5200

Efficient

Low Delay

High-Capacity

High Reliability

UMEMORY

AI data center storage products

PCIe 5.0 U.2 SSD E5200

Efficient

Low Delay

High-Capacity

High Reliability

UFLASH Enterprise SSD

Product Introduction

Peak performance, meeting the high-performance, low-latency, and high-capacity storage requirements of data centers, carriers, the internet, and AI training and inference, with excellent energy efficiency.

Product

Model

Specifications

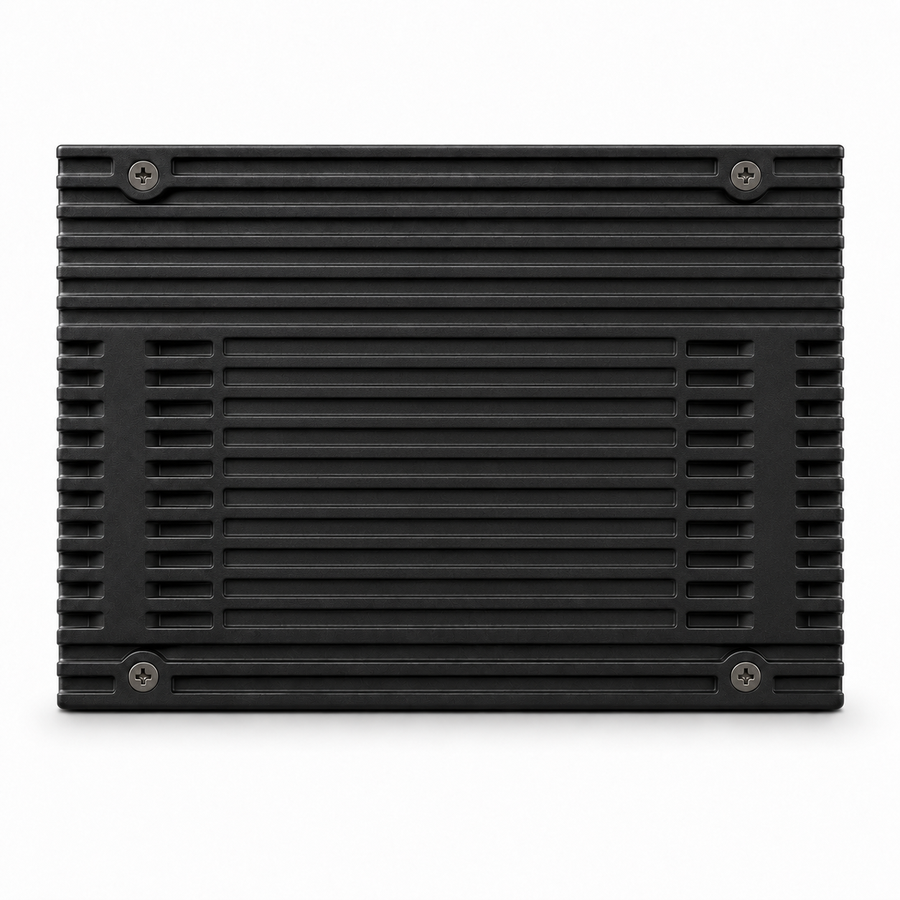

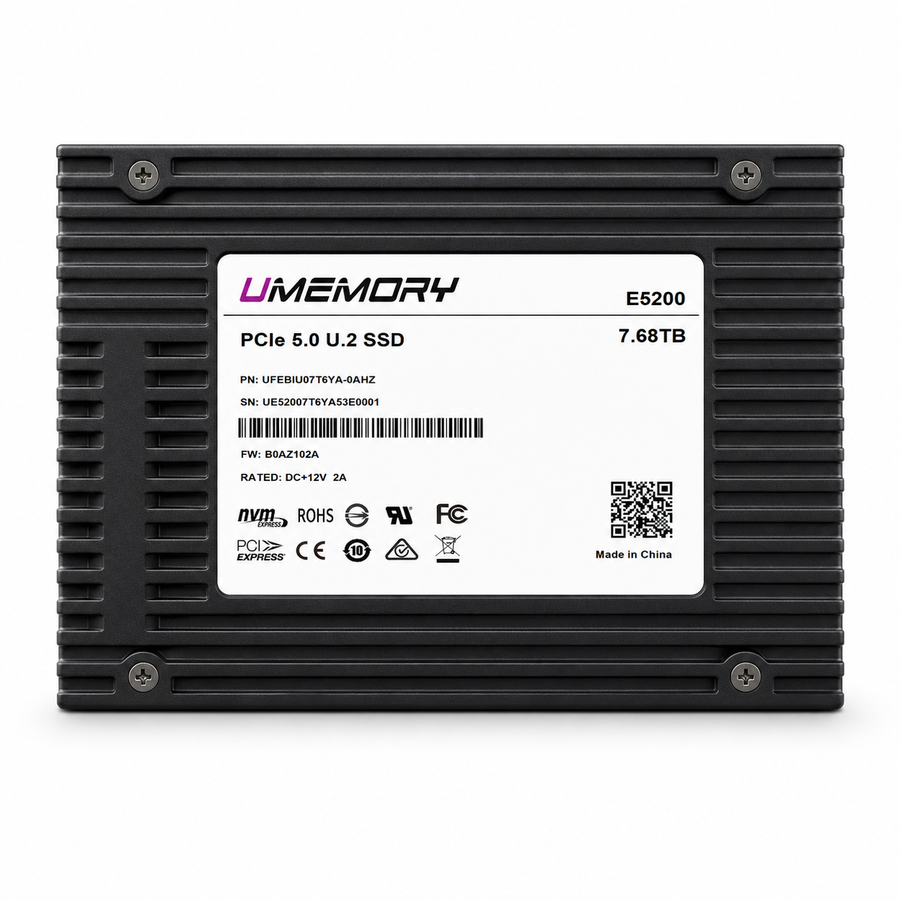

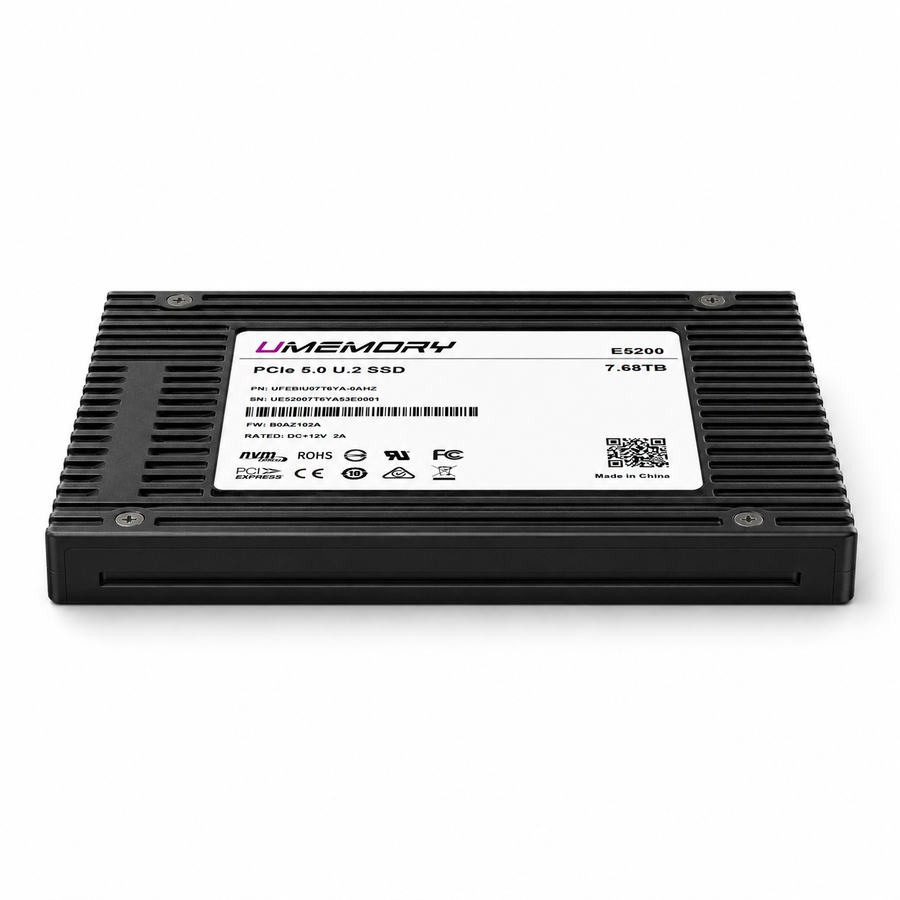

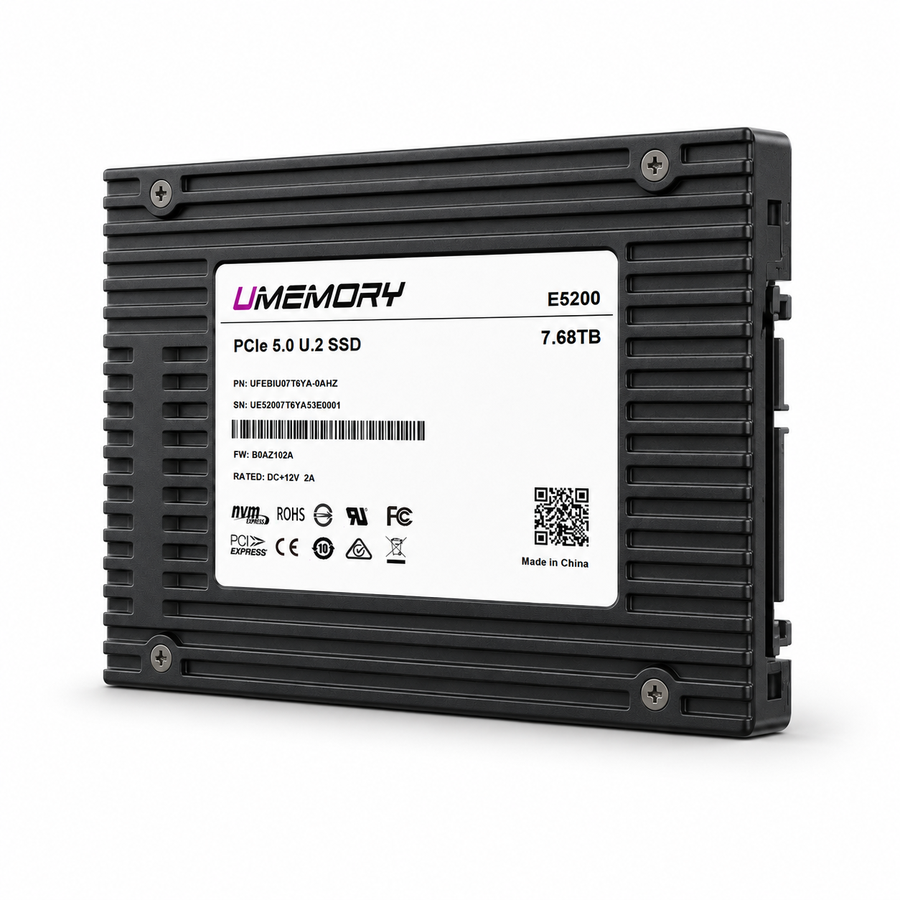

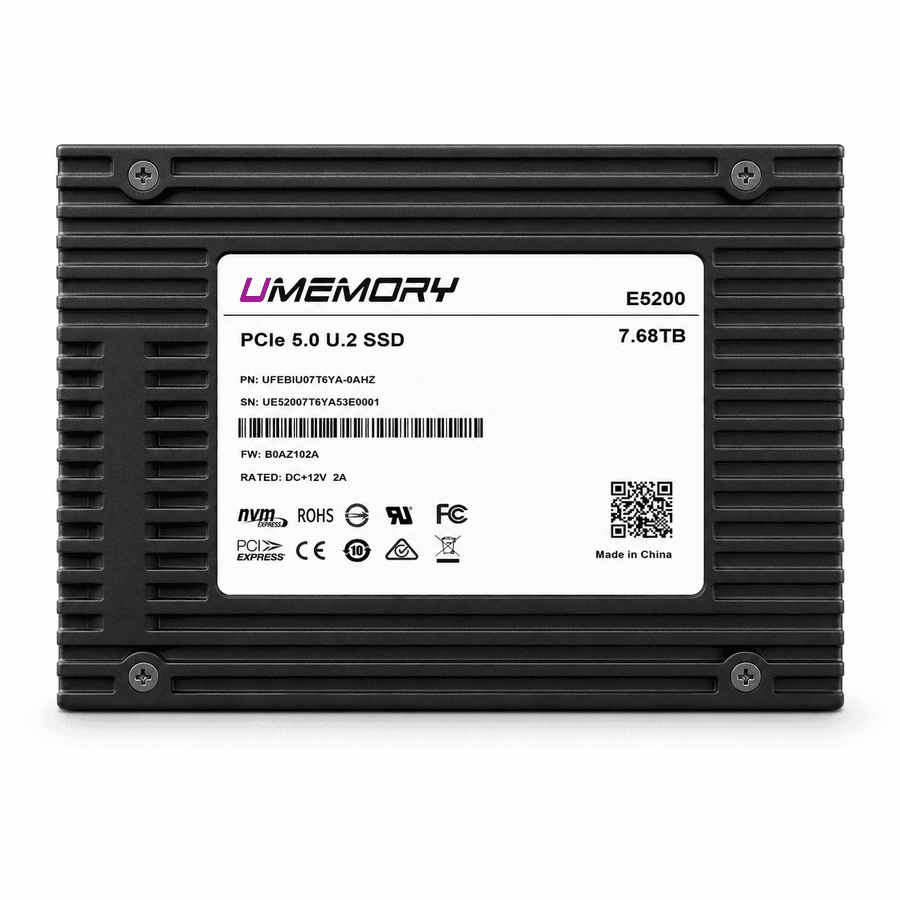

Model	E5200
Interface	PCIe 5.04 / 22 (Dual port)
Form Factor	U.2 / E1.S / E3.S
Capacity	3.84TB / 7.68TB / 15.36TB; 3.2TB / 6.4TB / 12.8TB
128K Sequential read/write	Up to 14 / 10 (GB/s)
4K Random read/write	Up to 3500K / 600K IOPS (3.84-15.36TB) Up to 3300K / 950K IOPS (3.2-12.8TB)
Power (W)	Activity < 23; Idle < 7.5
Latency (4k, μs)	55 / 10
MTBF	> 2 million hours
DWPD	≥1 (read-intensive) / 3 (read-write mixed)
Secure Encryption	SM2/3/4, AES, SHA, RSA, TCG Opal
Support platform	X86: INTEL / HaiGuang / Megacore; ARM: FeiTeng / KunPeng
Support system	RHEL, SLES, CentOS, Ubuntu, Windows Server 10+, VMware ESXi, UOS, KYLIN, Euler

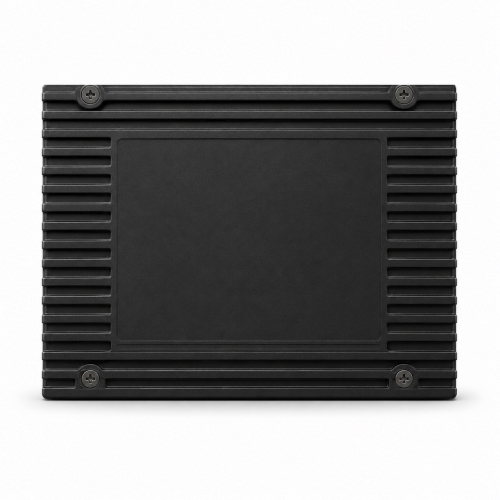

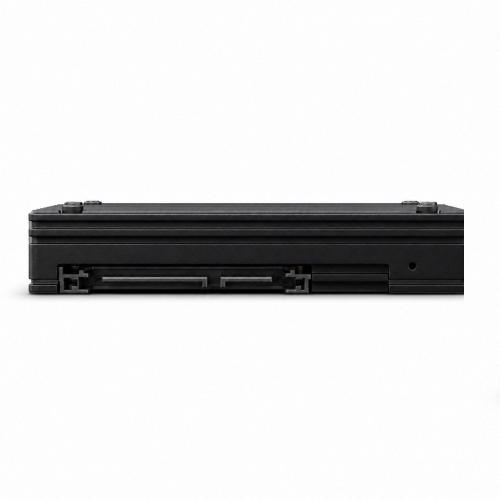

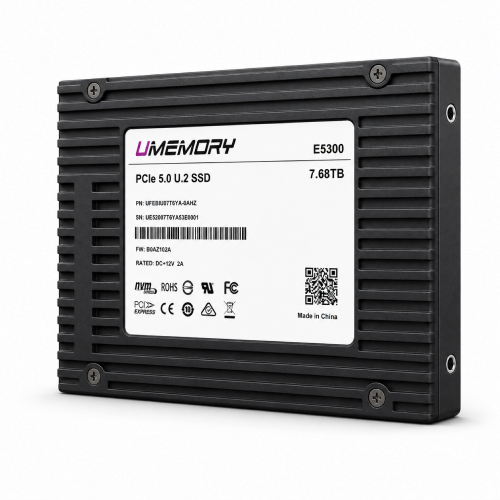

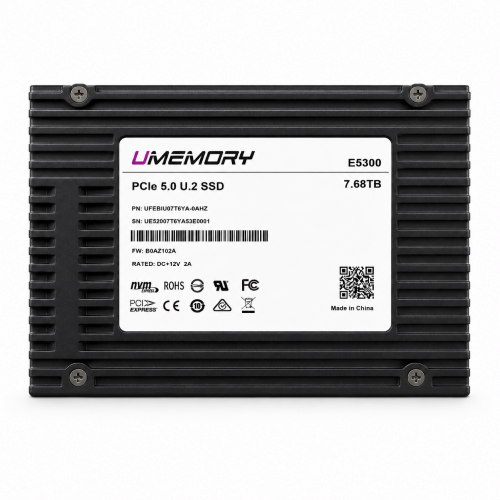

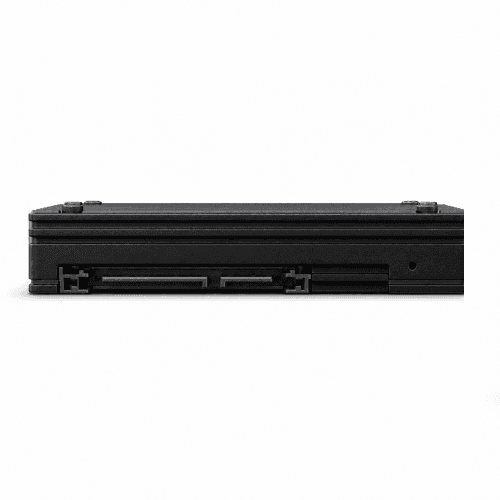

Model	E5300
Interface	PCIe 5.04 / 22 (Dual port)
Form Factor	U.2 / E1.S / E3.S
Capacity	3.84TB / 7.68TB / 15.36TB; 3.2TB / 6.4TB / 12.8TB
128K Sequential read/write	Up to 14 / 10 (GB/s)
4K Random read/write	Up to 3500K / 600K IOPS (3.84-15.36TB) Up to 3300K / 950K IOPS (3.2-12.8TB)
Power (W)	Activity < 23; Idle < 7.5
Latency (4k, μs)	55 / 10
MTBF	2.5 million hours
DWPD	≥1 (read-intensive) / 3 (read-write mixed)
Secure Encryption	SM2/3/4, AES, SHA, RSA, TCG Opal
Support platform	X86: INTEL / HaiGuang / Megacore; ARM: FeiTeng / KunPeng
Support system	RHEL, SLES, CentOS, Ubuntu, Windows Server 10+, VMware ESXi, UOS, KYLIN, Euler

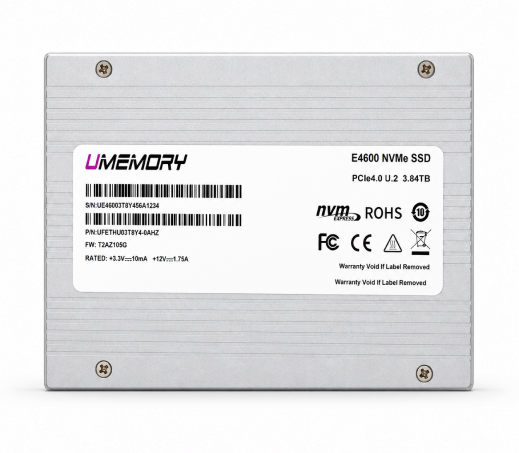

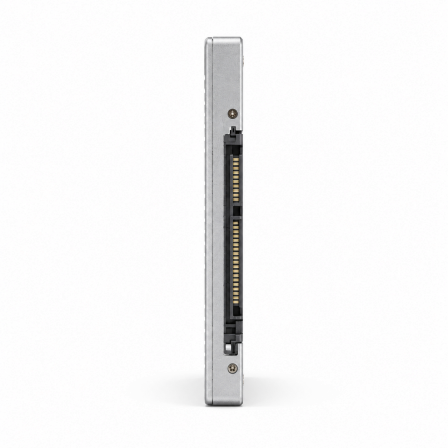

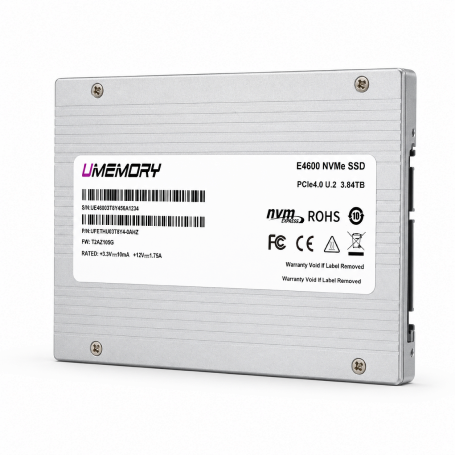

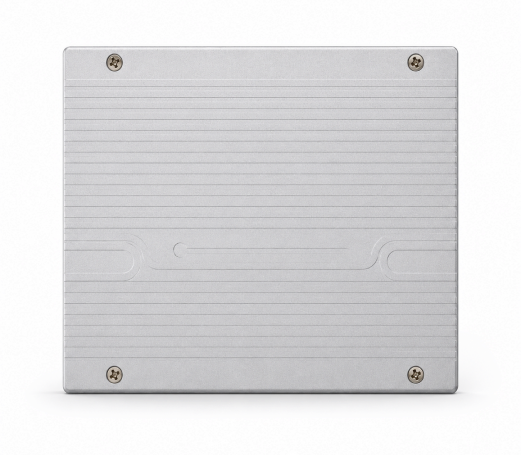

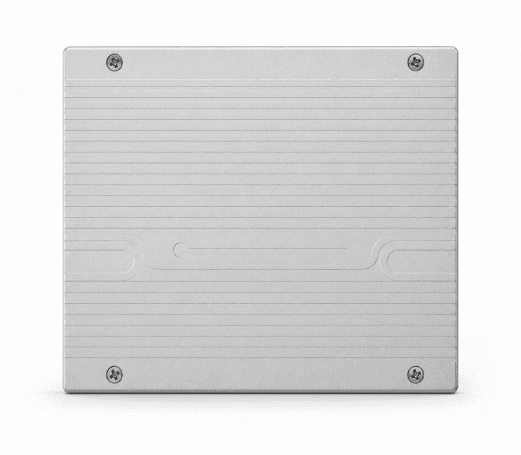

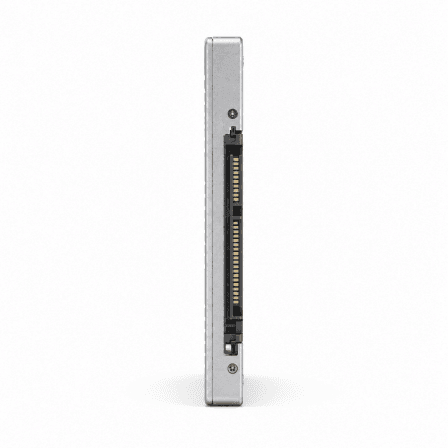

Model	E4600
Interface	PCIe 4.04 / 22 (Dual port)
Form Factor	U.2
Capacity	1.92TB / 3.84TB / 7.68TB; 1.6TB / 3.2TB / 6.4TB
128K Sequential read/write	Up to 6900 / 5100 MB/s
4K Random read/write	Up to 1500K / 300K IOPS (1.92-7.68TB) Up to 1500K / 500K IOPS (1.6-6.4TB)
Power (W)	Active < 18; Idle < 6
Latency (4k, μs)	72 / 12
UBER	< 10⁻¹⁷
MTBF	2 million hours
DWPD	≥1 (read-intensive) / 3 (read-write mixed)
Secure Encryption	SM2/3/4, AES, SHA, RSA, TCG Opal
Support platform	X86: INTEL / HaiGuang / Megacore; ARM: FeiTeng / KunPeng
Support system	RHEL, SLES, CentOS, Ubuntu, Windows Server 10+, VMware ESXi, UOS, KYLIN, Euler
Support function	PLP, End-to-end data protection, hot-plug, FDP, SMART monitoring, etc.

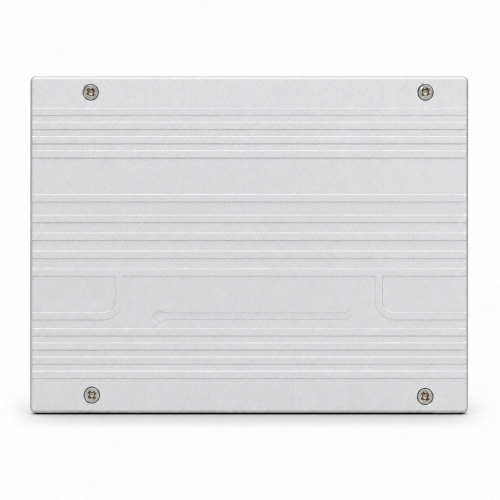

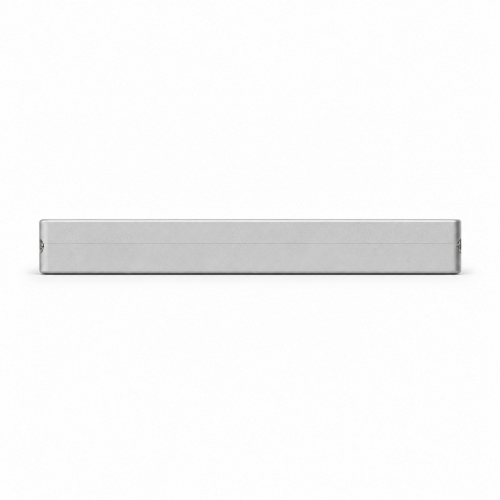

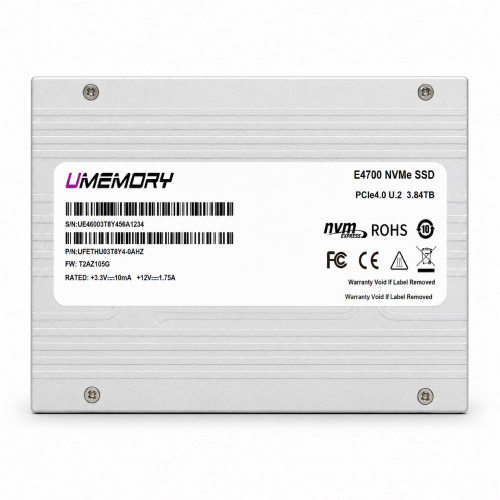

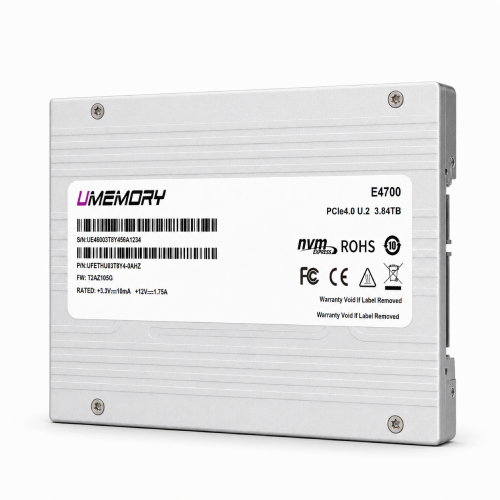

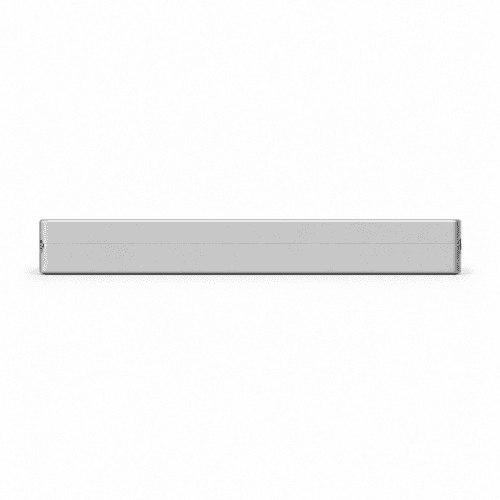

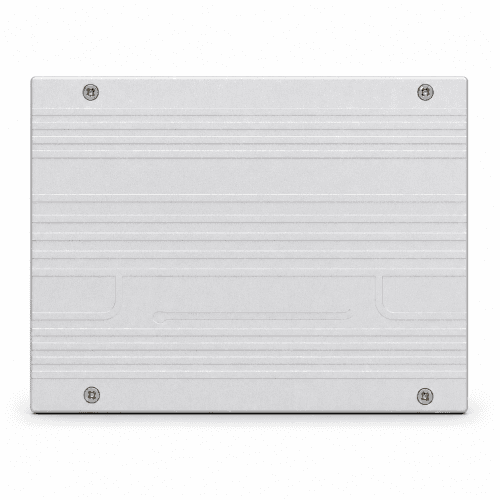

Model	E4700
Interface	PCIe 4.04 / 22 (Dual port)
Form Factor	U.2
Capacity	1.92TB / 3.84TB / 7.68TB; 1.6TB / 3.2TB / 6.8TB
128K Sequential read/write	Up to 6900 / 5100 MB/s
4K Random read/write	Up to 1500K / 300K IOPS (1.92-7.68TB) Up to 1500K / 500K IOPS (1.6-6.4TB)
Power (W)	Active < 20; Idle < 6
Latency (4k, μs)	65 / 18
UBER	< 10⁻¹⁷
MTBF	2 million hours
DWPD	≥1 (read-intensive) / 3 (read-write mixed)
Secure Encryption	SM2/3/4, AES, SHA, RSA, TCG Opal
Support platform	X86: INTEL / HaiGuang / Megacore; ARM: FeiTeng / KunPeng
Support system	RHEL, SLES, CentOS, Ubuntu, Windows Server 10+, VMware ESXi, UOS, KYLIN, Euler
Support function	PLP, End-to-end data protection, hot-plug, FDP, SMART monitoring, etc.

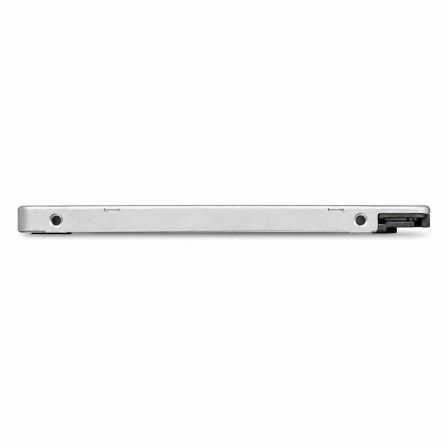

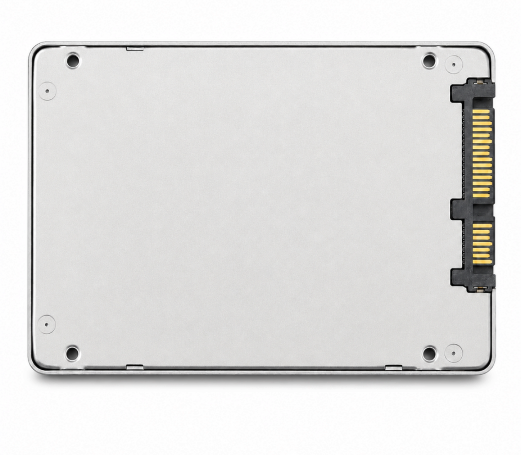

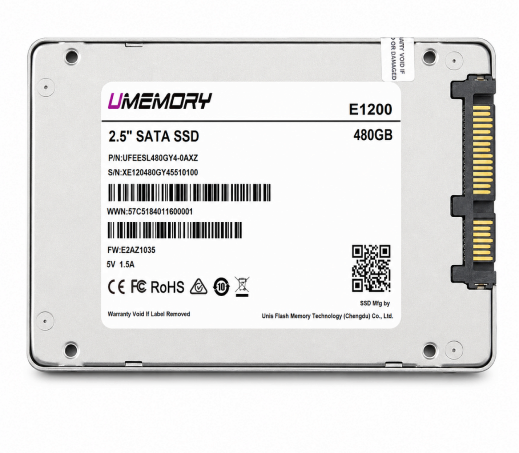

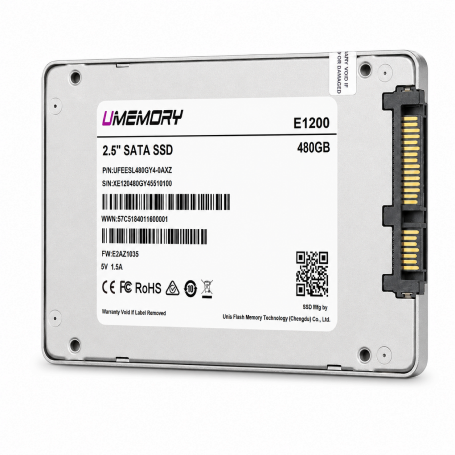

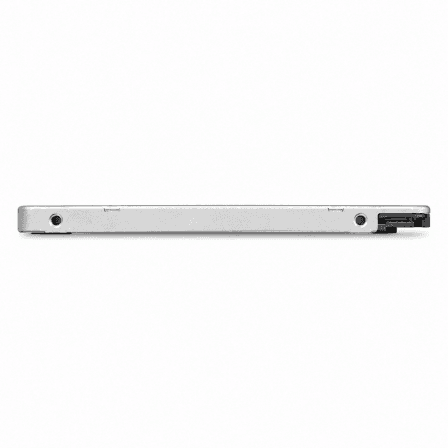

Model	E1200
Interface	SATA 3.0
Form Factor	2.5" SATA
Capacity	480GB / 960GB / 1.92TB / 3.84TB / 7.68TB
128K Sequential read/write	Up to 550 / 520 MB/s
4K Random read/write	Up to 195K / 45K IOPS
Power (W)	Active < 5; Idle < 1.6
Latency (4k, μs)	65 / 18
UBER	< 10⁻¹⁷
MTBF	2 million hours
DWPD	≥1
Secure Encryption	SM2/3/4, AES, SHA, RSA, TCG Opal

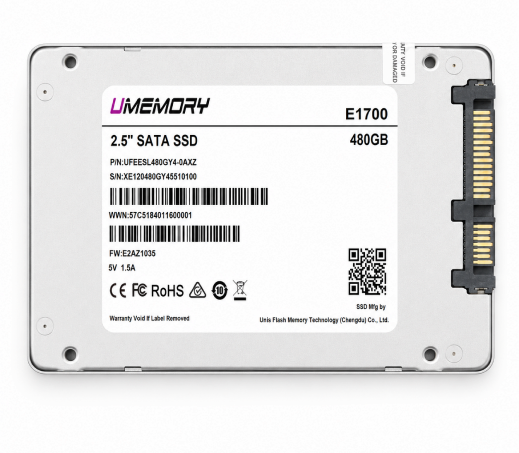

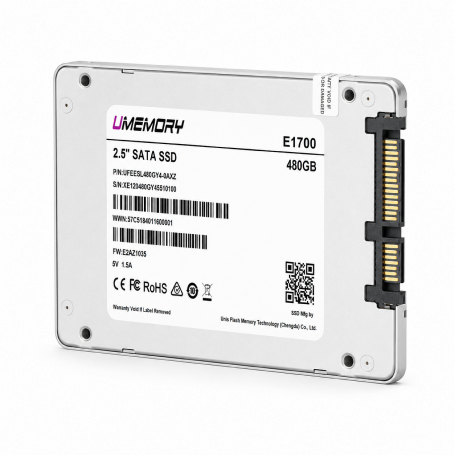

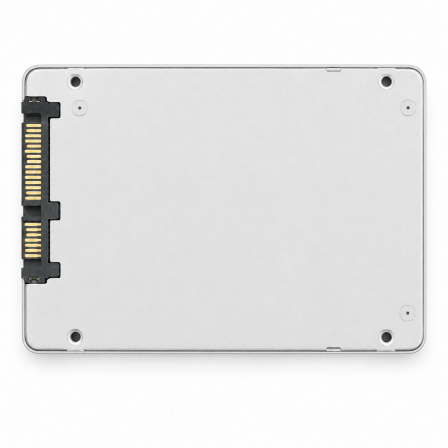

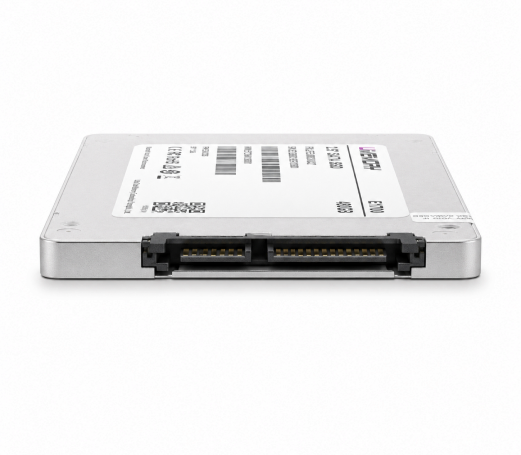

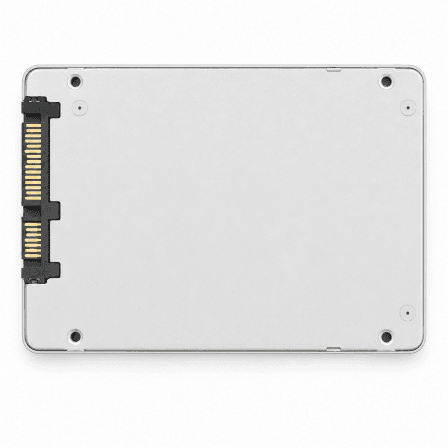

Model	E1700
Interface	SATA 3.0
Form Factor	2.5" SATA
Capacity	480GB / 960GB / 1.92TB / 3.84TB / 7.68TB
128K Sequential read/write	Up to 550 / 520 MB/s
4K Random read/write	Up to 195K / 45K IOPS
Power (W)	Active < 5; Idle < 1.6
Latency (4k, μs)	65 / 18
UBER	< 10⁻¹⁷
MTBF	2 million hours
DWPD	≥1 (read-intensive) / 3 (read-write mixed)
Secure Encryption	SM2/3/4, AES, SHA, RSA, TCG Opal

Product Highlights

High Performance

Low Latency

High Capacity

High Reliability

Application Areas

AI Data Center

Provide a high-performance flash storage foundation for large AI model training and inference, enabling efficient computing power release. With low-latency, high-throughput and large-capacity high-speed flash storage, it supports the large-scale and intelligent evolution of AI data centers.

Finance

Empower intelligent risk control, quantitative trading and AI anti-fraud scenarios to realize real-time data processing and decision-making. High-reliability flash storage solutions ensure continuous operation of financial services and compliance of data security.

Telecommunications

Support 5G-AI operation & maintenance, intelligent network scheduling and real-time processing of massive connection data. Large-capacity high-speed flash storage technology facilitates efficient operation and intelligent management of telecom AI computing platforms.

Industrial Internet

Carry real-time data collection and analysis for industrial AI quality inspection, digital twin and predictive maintenance. Highly stable edge flash storage technology connects industrial data to AI intelligent decision-making via critical links.

Medical

Support high-speed read/write and intelligent analysis of data for AI image diagnosis, smart medical records and telemedicine. Secure and stable large-capacity high-speed flash storage technology accelerates intelligent medical data applications and precise diagnosis & treatment.
